DT Ⅵ type 2 fasteners
2016-11-07 10:19 Click：times
Product name:

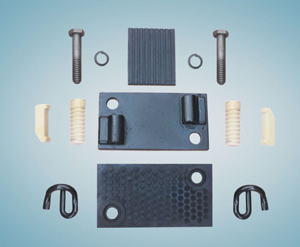

DT Ⅵ type 2 fasteners
Specifications:
DT Ⅵ type 2
Product remark:
60kg/m rail
Product categories:
Metro light rail products
product description：
1, the fastener is elastic separating type, is suitable for the tunnel 60 kg/m rails, u-shaped structure and ground pillow the track section.Article
2, withhold DI to play 18 (phi), divide into two kinds, intermediate and joint track pad in the middle and joint track pad, each with 6, 8, 10, 12, a total of four number 6, 12, to adjust the gauge spare;
3, fasteners, technical indicators:Between
(1) a single play button pressure is 8.25 kN, elastic range is 10.5 mm;
(2) joint single button play a pressure of 8.5 kN, play the 9.5 mm;
(3) fasteners node of vertical static stiffness is 20 ~ 40 kn/mm;
(4) the fastener fatigue load of 35 horizontal kn, load cycle 3 x106 times;
(5) a set of fasteners climbing resistance of not less than 11.5 kN;
(6) embed nylon sleeve pull-out force greater than 60 kn;
(7) resistance of fastener insulation components were greater than 108 Ω;
(8) + 8, and 12 mm gauge to adjust quantity;Horizontal adjustment quantity generally is 20 mm. TAG：
