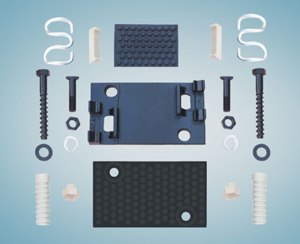

DJK5-1 type fastener
2016-11-07 10:37 Click：times
Product name:
DJK5-1 type fastener
Specifications:
DJK5 - type 1
Note:
50 kg/m rails
Product categories:
Metro light rail products
product description：
1, the fastener is elastic separation type, suitable for 50 kg/m rails yard line rolls inspection pit and short pillow the track section.
2, fasteners, technical indicators:
(1) withhold for wang part play (phi) 13 points A, B two kinds of type, gauge rail junction 6, 8 joint mat with type B play article, other parts of the article adopt type A bomb.Tighten to play a central front XiaKe contact track pad shall prevail.Tightening torque is 100 ~ 120 n. m
(2) fasteners node of vertical static stiffness of 30 ~ 50 kn/mm;
(3) a set of fasteners climbing resistance of not less than 11 kn prevention;
(4) embedded nylon sleeve pull-out force greater than 60 kn;
(5) the resistance of insulation components were greater than 108 Ω;
(6) track pad in the middle and two joint types, each with 6, 8, 10, 12, a total of four number 6, 12, to adjust the gauge spare;
(7) + 8, and 12 mm gauge to adjust quantity;Maximum level adjustment amount to 30 mm (iron pad 10 mm plate, iron plate mat under 20 mm). TAG：
