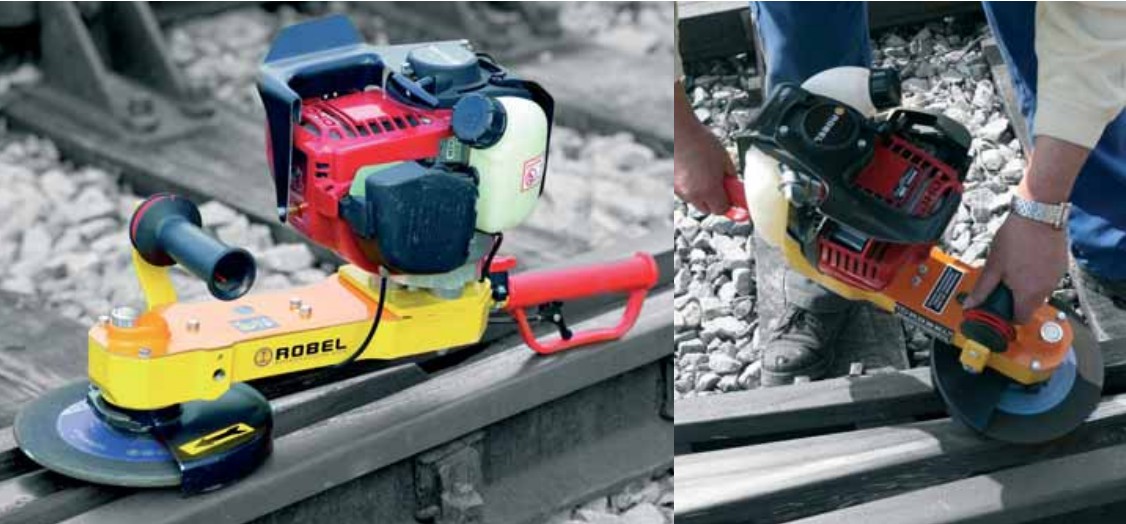

Right Angle Grinder 13.58

Compact, light, universally usable
•
Operation independent of location and does not require
an external power supply
•
Universally usable through 360° tilting technology
•
Particularly suited for switch frogs, grooved rails and
for the preparation of contact and signalling technique
•
With quickly adjustable spark protection
•
Quick changing device for tool-less changing of grinding wheel
•
Vibration reduced handle, different gripping positions for
left- and right-handed operators
•
Centrifugal clutch
•
Engine stop switch

TECHNICAL DATA
Drive  air-cooled 4-stroke petrol engine
Type Honda GX 35 with 360° tilting technology
Output 1.2 kW at 7000 rpm
Circumferential speed of grinding wheel max. 6600 rpm permissible
Diameter of grinding wheel max. 230 mm (thickness of disc 8 mm)
Weight: without grinding wheel 9 kg
Weight: grinding wheel approx. 0.8 kg
Dimensions L / W / H approx. 700 / 250 / 365 mm
