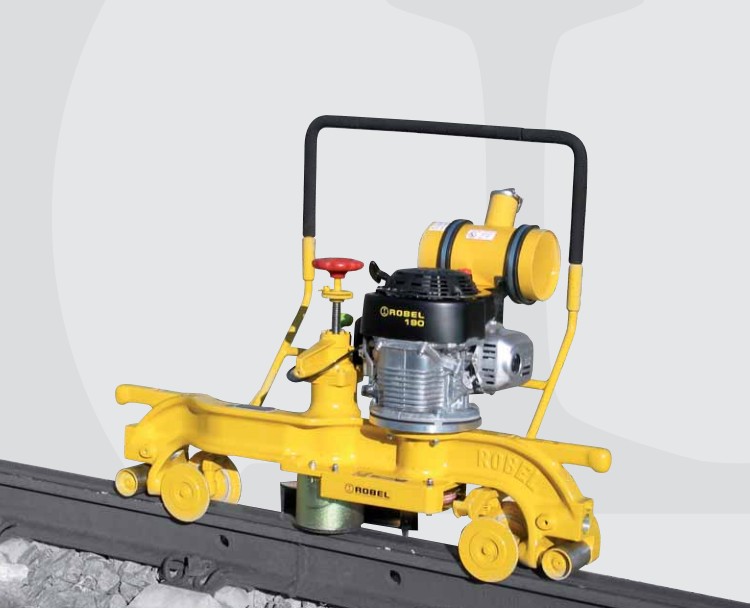

Machine for grinding welded joints and running
surfaces as well as running surfaces built-up
by welding
•
The ultra-high-performance machine can be opera-
ted by one operator and can be moved easily on
the rollers equipped with roller bearings
•
The cranked frame offers a full view of the surface
to be ground
•
The machine is pulled toward the rail by the guide
disks during grinding of the rail head, thus producing
the necessary grinding pressure
•
Grinding of build-up welds in the area of the
switches and frog points by means of the grinding
base extension arm

ACCESSORIES
•
Free-from-play grinding wheel
feed by means of handwheel
including limitation of grinding
depth
•
Machine slewable at 90° angle
•
Grinding wheel Ø 125 mm
with M20 central-nut
attachment
•
Tool set

ADDITIONAL EQUIPMENT
•
Guiding handle, elevated 100 mm, vibration-reducing design
•
Collapsible spark-protection hood
•
Grinding base extension arm
•
Multiroller carriage for grinding corrugations
•
Steel-wire brush for removing rust from the rails
•
Insulated outrigger
•
Transport and storage box
•
Switch cup grinding wheel Ø 90 mm with M20 central-nut
attachment
•
Grinding equipment for crane rails, grinding wheel
Ø 150 mm with M20 central-nut attachment
•
Hub flange for grinding wheels with 4 threaded inserts M8
•
Grinding wheel Ø 125 mm with 4xM8 bolt attachment
•
Grinding wheel Ø 150 mm with 4xM8 bolt attachment
