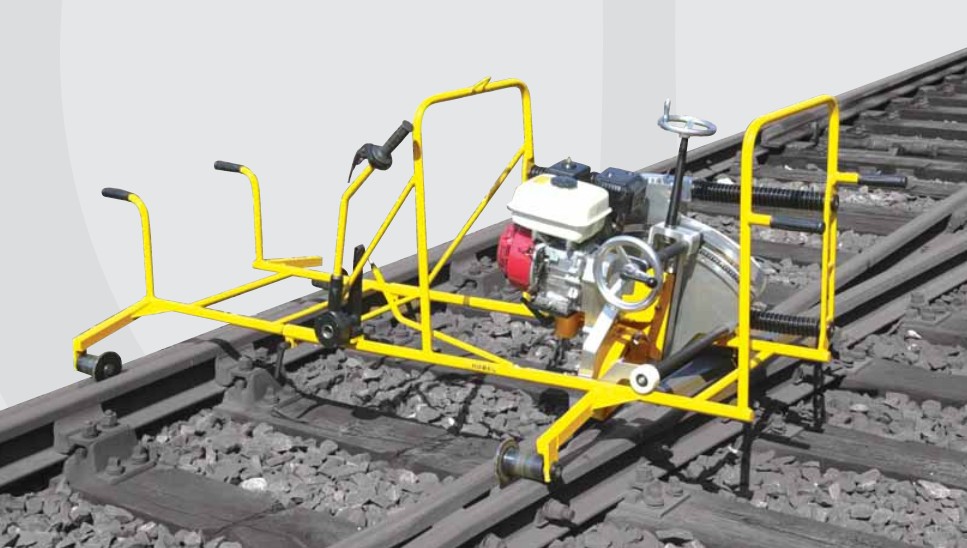

•For grinding build-up welds on switch
blades, crossing frogs, stock rails and
check rails and for removing burrs on rail
heads and switches
•Specially wide working range of the
grinding unit
•Good view onto grinding surface
•Grinding angle set by hand wheel
•Height adjustment of the grinding unit
via hand wheel
•Lateral feed via ergonomically arranged
hand lever with angle adjustment
•Linear guidance system with linear ball
bearings
•Dust protection by bellow
•Power transmission via V-ribbed belt

•Transverse travelling gear with insulated rollers
•4 wheel flange rollers, insulated from the machine frame
•Grinding wheels available which are resistant to forces
in axial direction

TECHNICAL DATA
Drive 4-stroke petrol engine electric motor, rotary current
Type HONDA GX 200 400 V, 50 Hz
Output 4.9 kW at 3800 rpm 3 kW at 2880 rpm
Grinding wheel
Outer diameter 260 mm
Bore x width 120 mm x 25 mm
max. slewing range 32° in both directions
Speed of grinding wheel 3500 rpm 3100 rpm
Dimensions L / W / H 2360 / 1200 / 930 mm
Basic unit 87.4 kg 96.4 kg
Outrigger 11 kg 11 kg
Grinding wheel 2.6 kg 2.6 kg
Total weight 101 kg 110 kg
