Schienenstegschleifmaschine 13.70

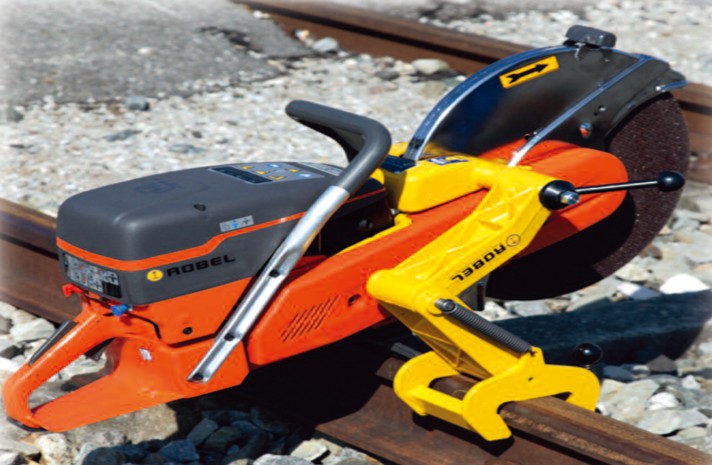

13.70 Rail Cutter

TECHNICAL DATA
Drive air-cooled 2-stroke petrol engine
Type Husqvarna 3120K
Output 5.8 kW at 9750 rpm
Diameter of cutting disk 350 mm
Maximum speed of cutting disc 5400 rpm
Maximum permitted  100 m/s
circumferential speed
Cutting performance approx. 1 min/cut
49E1 up to 10 cuts/disc
60E1 up to 6 cuts/disc
Guiding frame 8 kg
Cutter 17 kg
Cutting disc 0.8 kg
Total Weight 25.8 kg
Dimension L / W / H 800 / 400 / 400 mm
•
Highest performing rail cutter on the market –
worldwide
•
Quick and economical cutting of rails of
highest tensile strength
•
Short cutting times, approx. 1 min
for rail profile 49E1 possible
•
Optimised use of the cutting disc achieved by
remounting the rail cutter on the other side
•
Sparks fly downward
•
Cutting in slewed-over position possible
•
Sturdy, light aluminium guiding frame with
articulated arm and universal quick clamping
device for flat bottomed and grooved rails
•
With integrated cut position indicator for exact
fixing of the machine at the cutting position

•
Cutting technique from above and inclined
from below leads to an immediate weight
relief for the operator
•
Trouble-free startup of the engine with a
Smart-Start decompression device
•
Optimal dust protection through a dry-type
filter cartridge and impregnated prefilter and
fine filter
•
Centrifugal clutch as additional security feature
•
Spark protection for cutting disc –
prestressed and infinitely adjustable
•
Adapter for cutting discs with 1” boring
•
Accessibility – V-Belt tension without
disassembling of the cover
•
Electronic ignition system shielded from
dust and moisture

ACCESSORIES
•
Cutting disc ø 300 or 350 mm, receiver 22.2 mm (alternative
receiver 1”), maximum permitted circumferential speed 80 or
100 m/s resp. for freehand cutting
•
Cutting discs for other applications, e.g. for aluminium
SPECIAL EQUIPMENT
•
Transport and storing case
•
Safety blocking device with wedges ROBEL 13.81
for cutting rails under compressive strain
