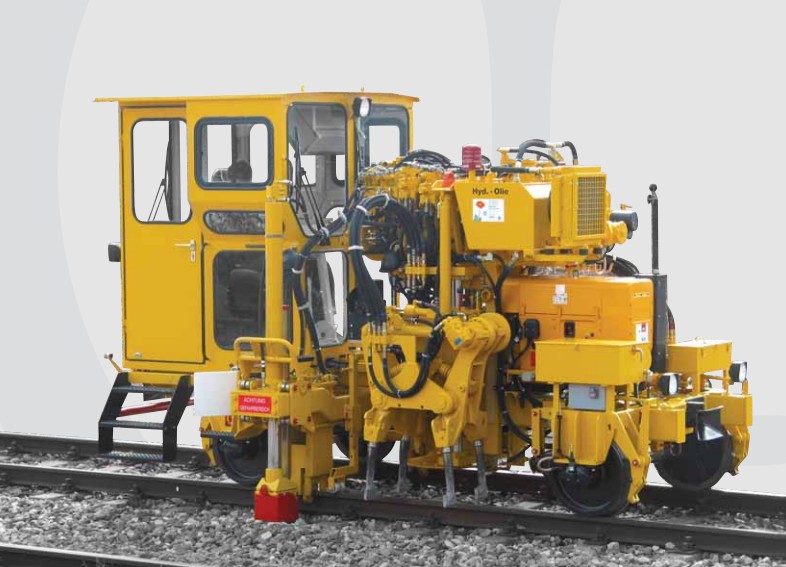

Lifting, Slewing and Tamping Machine MINIMA 2

For the mechanised maintenance of small construction sites•
•High quality asynchronous pressure vibration tamping
•
Two compact tamping units between the wheels
•
Adjustable basic frame for different sleeper spacings
•
The edges of the tamping tine pressure plates are
reinforced by build-up welding using hard electrodes
•
Lifting and slewing device
•
The operator’s seat with all the operating elements for
work and travel is located directly behind the tamping unit

•
Hydrostatic drive by hydraulic motor acting on all wheels
•
Slowing down of the machine via the hydrostatic drive,
mechanical parking brake
•
Linear control ensures precise motion sequences of
all the hydraulic work units
•
Control pendulum to control the lateral level
•
May be loaded onto lorry

ADDITIONIAL EQUIPMENT
•
Cabin incl. heating
•
Device for tamping twin sleepers
•
Hydraulic swivelling bolster for lifting and turning the machine
•
Derailing rails with adjustable frames
•
Optical track levelling equipment
•
Optical track direction meter
•
Track Gauge and Superelevation Measuring Device 83.37

Drive Diesel engine
Type Hatz 4L41C
Output 47 kW (64 HP) at 2300 rpm
Weight approx. 5.5 t
Length 2650 mm
Height 2225 mm
Wheelbase 2100 mm
Wheel diameter 400 mm
Travelling speed 15 kph in both directions,
infinitely adjustable
TECHNICAL DATA
