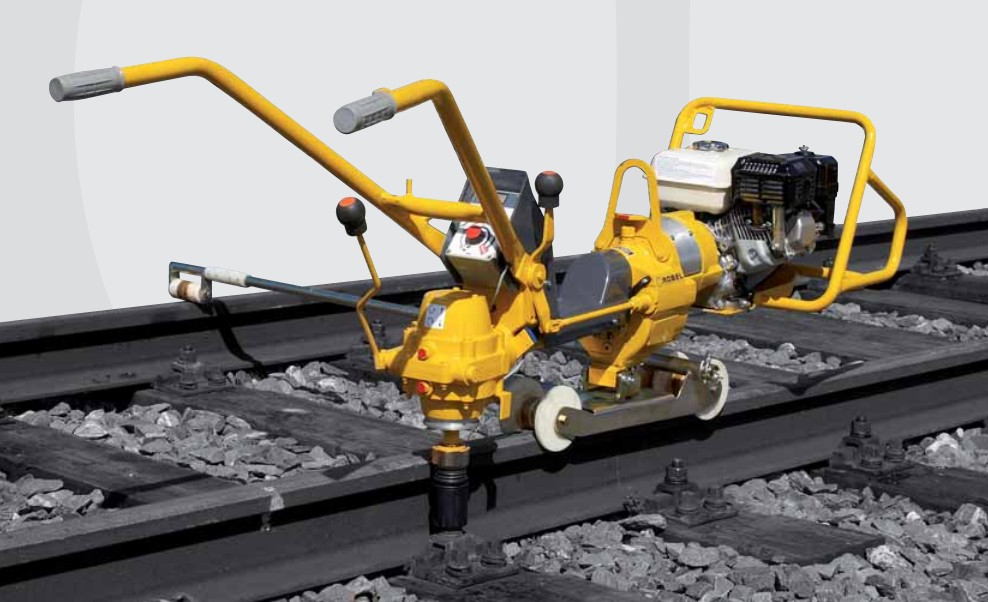

Universal Power Wrench 30.82 RKS

For the fastening and loosening of nuts
and sleeper bolts as well as for all
other wrenching operations on the track
•
Electric multiple disk clutch for maximum
endurance
•
Electric control for exact adherence to
set values
•
Display enables precise setting of torque
with potentiometer on the control panel
and visual check by the operator
•
Two-gear transmission with spur wheels
guarantees a high efficiency

•
Wrenching process is started with the push of a button. Automatic
termination of the wrenching process guarantees highest precision and
protects from overload
•
Steady wrenching behaviour and little wear of material due to articulated
socket wrenches and frictionless revolving in case of inclined rail fastening
•
LED lighting for the socket wrench has been integrated into the gear housing
and illuminates the work area optimally
•
Quick change chuck
•
Data logger for working hours, number of engine starts and wrenching cycles
•
Protective frame for the engine with handles and socket holders for 2 socket wrenches
•
Cable routing integrated into the housing
•
One-rail running gear with insulated rollers with roller bearings, insulated outrigger
•
An extremely low centre of gravity enables operation without an outrigger

•
Sockets in various sizes (hexagon sockets also available
with nut ejectors)
•
Four-wheeled insulated travelling gear for track gauge
1435 mm and others
•
Fish Bolt Spanner ROBEL 31.82
•
Torque Meter ROBEL 86.12
•
Lubricating equipment for hook bolts
•
Travelling gear with rubber wheels
ADDITIONAL EQUIPMENT

TECHNICAL DATA
Drive Air-cooled 4-stroke petrol engine
Type Honda GX 200
Output 4,9 kW at 3800 rpm
Speed of wrenching spindle
Working gear 200 rpm
Performance gear 70 rpm
Torque display max. 999 Nm
Setting range for fastening 150 Nm to 350 Nm / 420 Nm to 999 Nm
Loosening torque / fastening torque max. 1000 Nm
Dimensions L / W / H  2030 x 600 x 750 mm
Weight without outrigger  approx. 92 kg
(Outrigger 4 kg)
