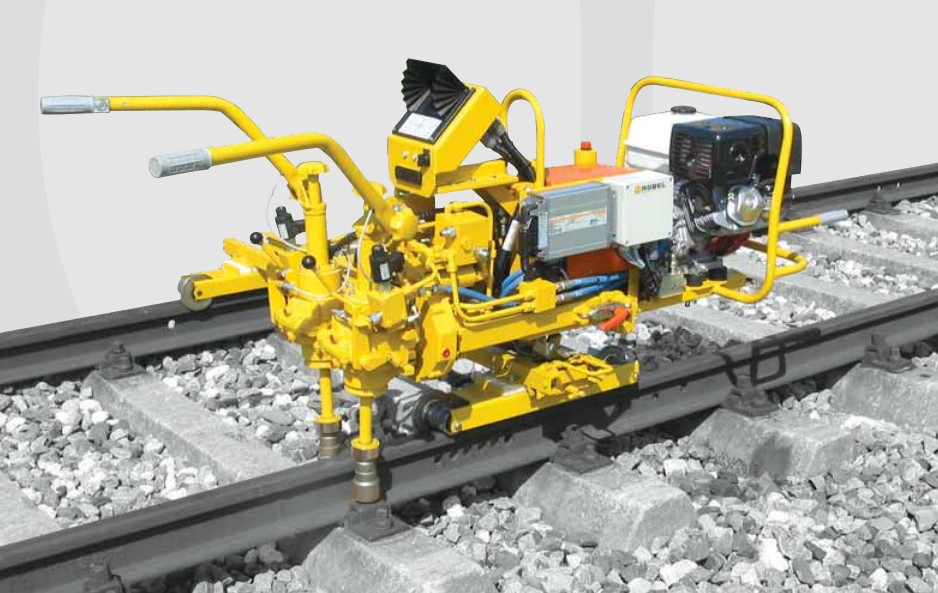

Double Spindle Synchronised Power Wrench 30.42

•
Synchronous tightening with constant torque
•
Electronic storage of wrenching operation and
torque values makes the machine ideal for
new and high speed tracks as well as all
tracks with high quality standards
•
Higher speed for light loads. Automatically
synchronises tightening as torque icreases
•
Hydraulic control
•
Controlled wrenching operation up to the
set torque
•
Display of torque values and settings on
back-lighted screen
•
Ultra low speed counter-rotation enables
easy engagement and removal of sockets
•
Ergonomic operation by means of adjustable
handles
•
Storage of approx. 250.000 wrenching
operations
•
Patented hydraulic coolant 4 litres,
optionally biologically degradable hydraulic oil

•
Set torques are valid only for the tightening of screws
•
Loosening with maximum torque
•
Single wrench head operation possible

•
Spring band mounting tool
•
Off-tracking device
•
Drive on request
ADDITIONAL EQUIPMENT

TECHNICAL DATA
Drive 4-Stroke Honda GX 390;  Electric motor,
9,6 kW at 3600 rpm rotary current 400 V, 50 Hz,
7,5 kW at 2905 rpm
Operation electro-hydraulic; automatic wrench device
High Speed Drive 245 rpm (max. 100 Nm)
Synchronous Drive 35 rpm
Speed control automatic
Fastening torque max. 550 Nm
Unfastening torque max. 900 Nm
Torque precision +/- 3%
Synchronous precision +/- 1%
Dimensions L / W / H 2100 / 680 / 900 mm
Weight basic unit 199 kg
Weight transverse
travelling gear 60 kg
Design with diesel engine and particle filter system available on request
