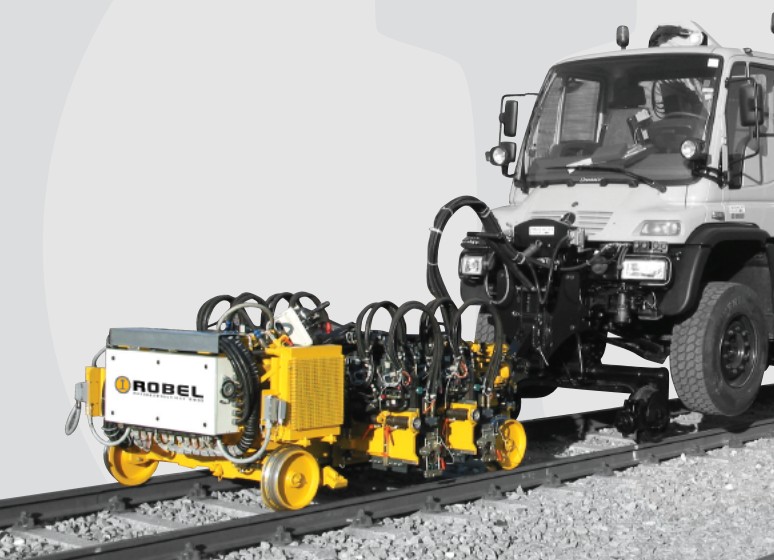

8-Spindle Precision Wrenching Unit 30.75

•
For the simultaneous, fully automatic tightening
and loosening of up to eight rail fastenings in
one work process
•
For the synchronous wrenching of tension
clamp fastenings
•
High synchronous and torque precision
•
Powerful and precise wrenching mechanism
•
High operation speed
•
Compact aluminium frame with four wrenching
shuttles and eight fully hydraulically operating
wrenching motors
•
Rail tongs for the automatic fixing of the
wrenching unit during the work process
•
Display for the setting, reading and verification
of the fastening torques
•
Electronic recording unit
•
Optimal data recor ding and evaluation via PC
•
The wrenching unit may be quickly and easily
br ought within the vehicle gauge
•
May be combined with various energy sources
•
Continuous movement of the energy source
during wr enching operation. The wrenching
unit has been designed as a satellite and is
positioned by means of a linear drive
•
Wrenching unit with illumination
•
Remote contr ol

ADDITIONAL EQUIPMENT
•
Compr essed air cleaning device for track fastenings
•
Automatic inserting device for pre-mounted tension clamps

TECHNICAL DA TA
Work speed approx. 600 m/h
Weight 2300 kg
Axle base 1950 mm
Wheel diameter Ø 340 mm
Combination with various energy sources - Track vehicle ROBEL or similar
- Excavator with rail-road unit
- Rail-road vehicle, e.g. Unimog
- Integrated in track relaying train
- Independent machine, self-propelled
Energy consumption electr. 24 V, DC / 60 ampere
Required hydraulic supply 60 kW
Hydrostatic drive 0 – 1.0 km/h
