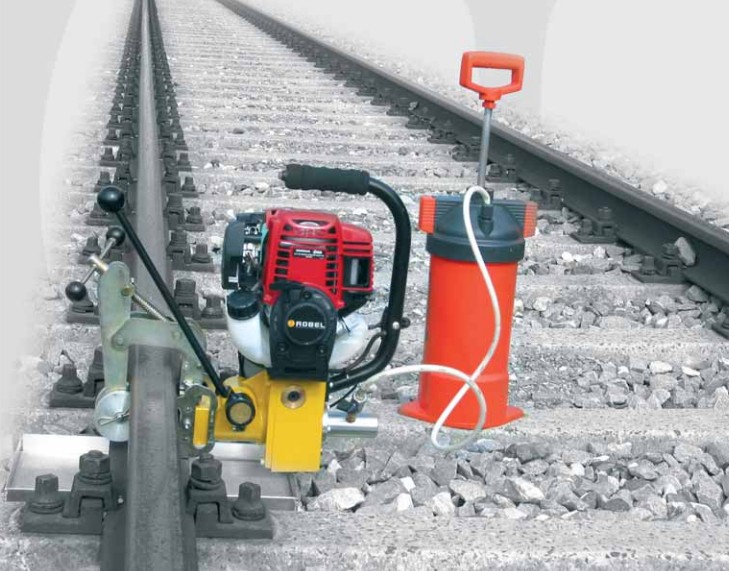

Rail Drilling Machine 10.40

•
For all rail web drillings in the signalling
and track construction sector
•
Drilling time about 30-60 secs depending
on diameter and rail profile
•
Highest mobility due to the light weight
•
Quick action rail clamping device
•
One-man operation
•
Manual feed
For economic drilling of rails within shortest time
TECHNICAL DATA
Drive air-cooled 4-stroke Electric motor
petrol engine
Type HONDA-GX35 400 V / 50 Hz
Output 1.2 kW at 7000 rpm 0.55 kW at 2800 rpm
Max. drill spindle speed 300 rpm approx. 217 rpm
Max. drill diameter at
a rail web strength of 900 N/mm
2
38 mm
Dimensions L / W / H 420 / 310 / 530 mm 500 / 300 / 520 mm
Total weight 19 kg approx. 21 kg

SPECIAL EQUIPMENT
•
Coolant reservoir with pressure pump
•
Coolant supply led through drill spindle and drill
•
Universal clamping template for S49/S54/UIC60.
Templates for other rail profiles on request.

•
Transport and storage case, aluminium
•
Core drill bits 95.41 in designs for flat bottomed and
grooved rails up to 38 mm diameter with cylindrical shaft
(Weldon) up to a rail strength of 900 N/mm
2
•
Coolant, biodegradable
•
Coolant collecting pan
•
Distance template with drill guide
•
Clamping templates for other rail profiles
