Hydraulic Rail Stressor 24.70

•

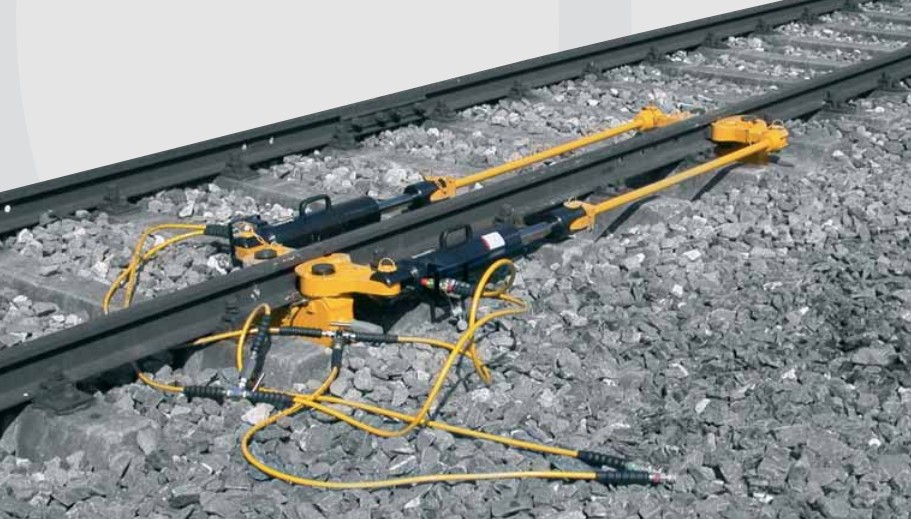

The obstructionless hydraulic rail
stressor is used primarily during
the welding of rails
•
The stressor serves to pull, push
or hold the rail in neutral length
during welding processes
•
As a result of the obstructionless
design, rail vehicles can pass over
when the stressor is mounted on
the rails

•
Yokes in box-type design and lightweight
metal hydraulic cylinders make possible
a maximum weight of the heaviest
component of only 33 kg
•
Quick mounting without tools
•
The yokes can also be arranged above
the rail, e.g. on a ballastless track
•
The option of parallel operation on both
rails of the track is possible

•
2 yokes with 2 clamping device
•
2 hydraulic cylinders
•
2 pulling device
•
1 hydraulic pump. According to order either
a hydraulic hand pump or a hydraulic power
pack with pipings and hose couplings
•
Two-stage pump with automatic
switching from low-pressure
(quick feed) to high-pressure
mode
•
Drive by 4-stroke petrol engine
•
Compact unit with two-stage pump;
automatic switching from low-
pressure (quick feed) to high-
pressure mode
The device consists of the following items: Hydraulic Hand Pump Hydraulic Power Pack

TECHNICAL DATA
Pulling force 700 kN
Pushing force 400 kN
Stroke 380 mm
Operation mode according to order by hydraulic hand pump
by hydraulic power pack
Basic unit 198 kg
Hydraulic hand pump approx. 55 kg
Hydraulic power pack approx. 67 kg
Heaviest component approx. 33 kg
Dimensions L / W / H when mounted approx. 2650 / 1020 / 375 mm
