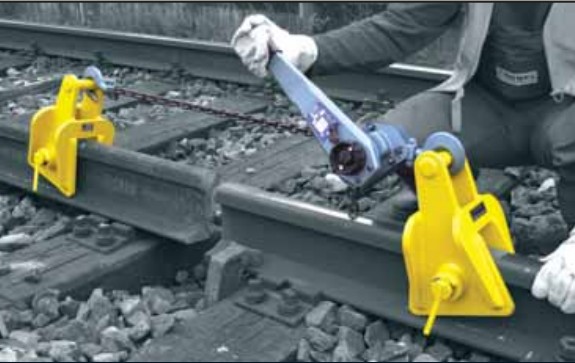

Rail Puller 24.11

For pulling together two flat bottomed rails in longitudinal direction

Standard design
•
Clamping heads for rails S49/54, UIC 54/60
•
1 ratchet pull 30 kN pulling force for rail gaps
up to a length of 3 m
•
Ratchet pull 15 kN pulling force
•
Clamping heads for other rail profiles upon request
ADDITIONAL EQUIPMENT

TECHNICAL DATA
Up to a rail length of 120 m at 54 kg/m Up to a rail length of 180 m at 54 kg/m
Max. pulling force 15 kN 30 kN
Weight 46.5 kg 58 kg
