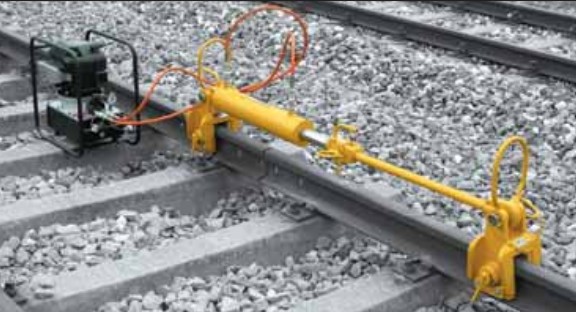

Hydraulic Rail Pulling and Pushing Device 24.12

For pulling together and pushing apart two rails in longitudinal direction

ADDITIONAL EQUIPMENT
Standard design:
•
1 hydraulic cylinder, double action, with carrying handle
•
2 clamping heads
•
Distance jaws for different rail profiles
(please provide a drawing)
•
Either with hydraulic handpump or with compact hydraulic unit
•
Extension rod 1100 mm for pulling gaps over 940 mm up
to 2000 mm

TECHNICAL DATA
Max. pulling / pushing force 60 kN / 80 kN
Cylinder stroke 400 mm
Max. pressure in the hydraulic system 100 bar
Dimensions L / W / H
Clamping head for rails S49 190 / 270 / 550 mm
Distance jaws 170 / 40 / 70 mm
Hydraulic cylinder 950 / 120 / 180 mm
Weight:
Basic unit 77 kg
Handpump 7.6 kg
Engine 29 kg
