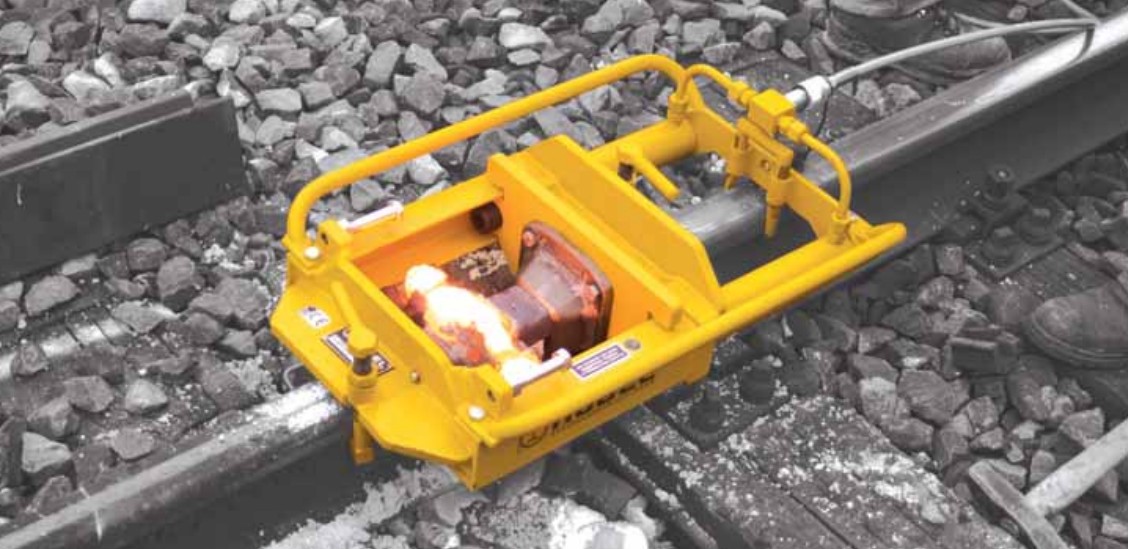

Hydraulic Weld Trimmer14.10

For shearing off the weld bead

•
Consisting of a frame with 2 handles, 2 quick-
action clamping devices, a movable part with
guide, 2 shear blades with stopper and 2 parallel-
linked hydraulic cylinders
•
For rail profiles S 49/ S 54/ UIC 54 E/ UIC 60;
other rail profiles on request
•
The welds are not affected by tensile force due to
shearing the weld bead from both sides and this
avoids thermal cracks
•
For thermite welding
•
Easy and quick operation
•
Optionally equipped with hand pump or hydraulic
power pack
•
Minimizes the grinding operations to follow

TECHNICAL DATA
Equipped with Hydraulic power pack Hand pump
Weight 24 kg 8 kg
Working pressure max. 700 bar 500 bar
Shearing force max. 200 kN 145 kN
Stroke max. 175 mm
Hydraulic oil HLP 46 1 l
Dimensions L / W / H 780 / 480 / 220 mm
Total weight of the basic machine
including shear blades 55 kg
