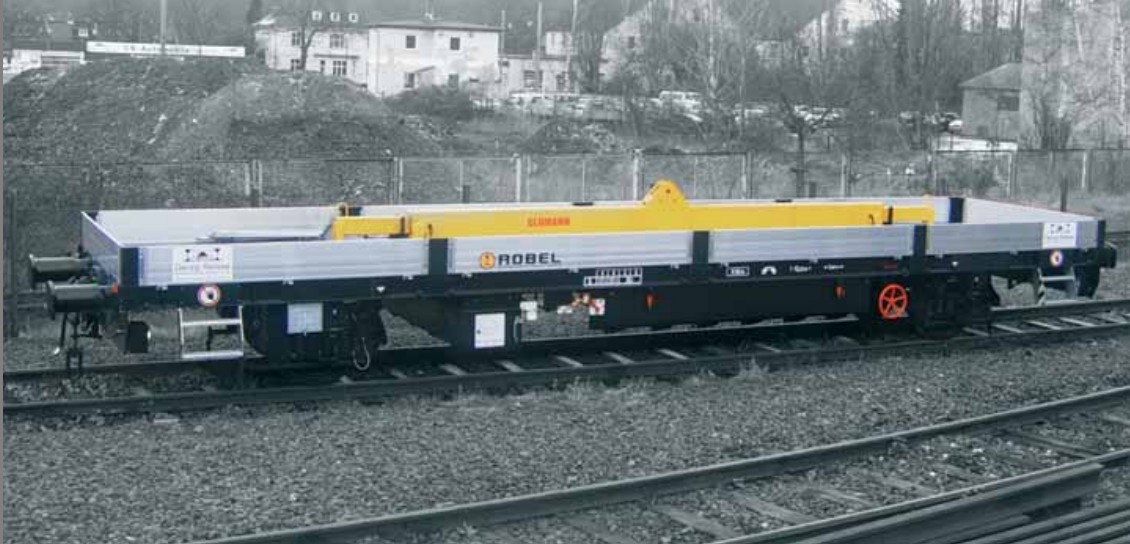

Trailer55.47

•
Running wheels milled from special steel with extra
thick threads (re-milling possible)
•
Axle bearings with roller bearings
•
Axle shaft made of high quality steel
•
Compressed air brake (KE brake) acting on both axles,
thus especially safe service and emergency brake,
spindle parking brake
•
Brake power regulator
•
Frame with loading bolt and trailer coupling
•
Structured steel-plate platform
•
Light-metal side walls, foldable and removable

Type 55.47
max. loading capacity 25 t
max. velocity 100 kph
Track gauge 1435 mm
Wheel base 8000 mm
Wheel diameter 840 mm
Platform height above top of rail 1180 mm
Platform width 2790 mm
Platform length 12000 mm
Dimensions L / W / H 13250 / 3040 / 1540 mm
Empty weight approx. 15 t
Buffers and coupling hook according to UIC Ye s
Suspension of running gear Coil suspension
TECHNICAL DATA
