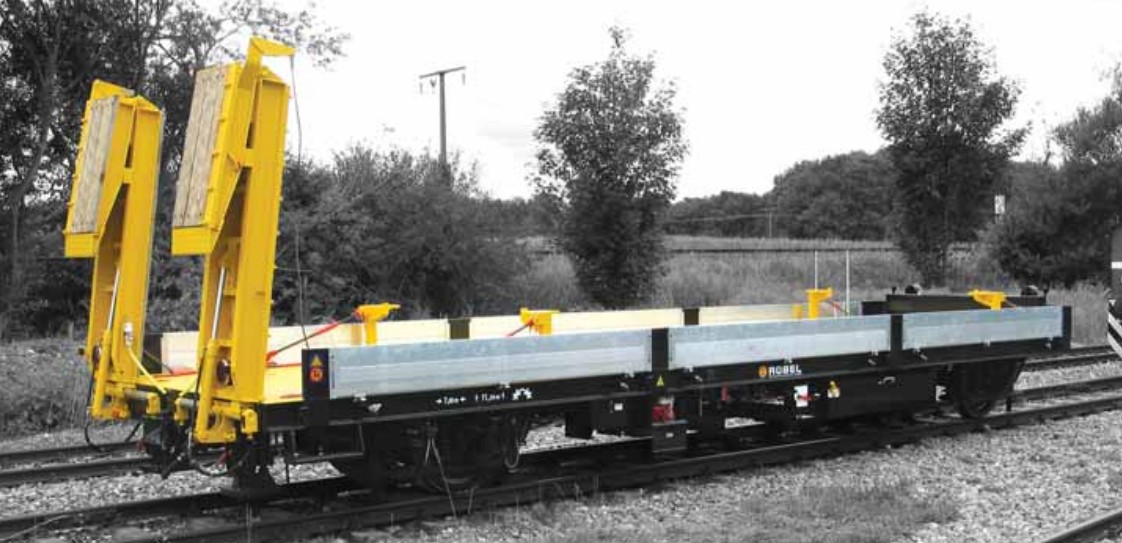

Trailer55.54

•
Design with hydraulically operated ramps
•
Running wheels milled from special steel with extra
thick threads (re-milling possible)
•
Axle bearings with roller bearings
•
Axle shaft made of high quality steel
•
Compressed air brake as spring-loaded block brake
(KE brake) acting on both axles, thus especially safe
service brake, emergency brake and parking brake
•
Brake power regulator
•
Frame with loading bolt and trailer coupling
•
Structured steel-plate platform
•
Light-metal side walls

ADDITIONAL EQUIPMENT
•
Hydraulic power pack for hydraulic ramps
•
Hydraulically operated rotating device for trailer
•
Mechanical ramps in aluminium design
•
Automatic trailer coupling at both ends

Type 55.54
max. loading capacity 25 t
max. velocity 100 kph
Track gauge 1435 mm
Wheel base 7500 mm
Wheel diameter 840 mm
Platform height above top of rail 950 mm
Platform width 2900 mm
Platform length 10000 mm
Dimensions L / W / H 11540 / 3000 / 3400 mm
Empty weight approx. 14 t
Buffers and coupling hook according to UIC One-sided
Suspension of running gear Coil suspension
TECHNICAL DATA
