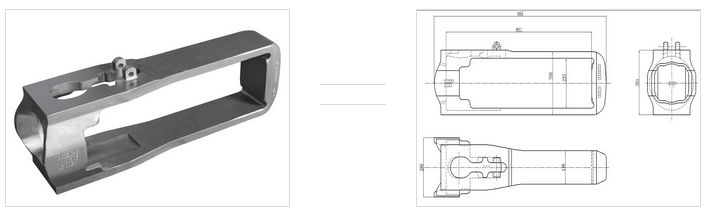

Rotary hook tail frame
Introduction of main performance index
| Name | Maximum permanent deformation (mm) at 3940kN loading | Minimum ultimate load (KN) |
| Strength requirement | 0.8 | 4060 |
Mechanical properties
|
Yield strength |
tensile strength | Elongation rate | Section shrinkage | hardness | To attack |
| V- type gap（-40℃） | |||||
| (MPA) | (MPA) | % | % | (HB) | (J) |
| ≥850 | ≥950 | ≥16 | ≥55 | 269～321 |
≥50 |
1 Product Name: rotary forging hook tail frame
2 weight: 112kg
3 forging material: 25MnCrNiMoA
4 induction heating
5 grain size is not less than 6
6 non metallic inclusions maximum grade 2
7 heat treatment: normalizing + tempering
8 the surface of the forging is not allowed to crack, fold.
9 ultrasonic testing and magnetic particle testing
