Truck bogie parts¡µForging support
update£º2016-11-28 10:39 Click£ºtimes
- brand
- model
- describe
Forging support Introduction of main performance index Product category main parameter X£¨mm£© Y£¨mm£© Z£¨mm£© H£¨mm£© weight£¨kg£© K2Type forging support seat 278 145 167 110 10 K6Type forging support seat 275 135 166 104 10 Mechanical pr
introduce

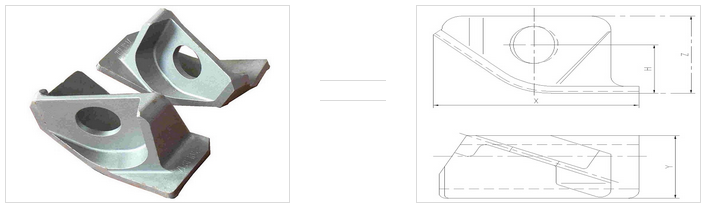

Forging support
Introduction of main performance index
| Product category | main parameter | ||||
| X£¨mm£© | Y£¨mm£© | Z£¨mm£© | H£¨mm£© | weight£¨kg£© | |
| K2Type forging support seat | 278 | 145 | 167 | 110 | 10 |
| K6Type forging support seat | 275 | 135 | 166 | 104 | 10 |
| Mechanical properties | |||||
| Yield strength | tensile strength | Elongation rate | Section shrinkage | hardness | To attack |
| V- type gap£¨-20¡æ£© | |||||
| (MPA) | (MPA) | % | % | (HB) | (J) |
| ≥235 | ≥375 | ≥26 | / | / |
≥27 |
1 forging material: Q235-D
2: normalizing heat treatment
3 the surface of the forging is not allowed to crack, fold.
4 magnetic particle inspection
