C80E Striker Casting
update：2016-11-28 14:08 Click：times
- brand
- model
- describe
C80E Striker Casting Introduction of main performance index Mechanical Properties Yield Strength Tensile Strength Elongation (50mm) Reduction Of area Hardness Impact V-Notch （-7℃） (MPA) (MPA) % % (HB) (J) 345 550 24 36 137～228 20 1.Pro
introduce
C80E Striker Casting
Introduction of main performance index
| Mechanical Properties | |||||
| Yield Strength | Tensile Strength | Elongation (50mm) | Reduction Of area | Hardness | Impact |
|
V-Notch （-7℃） |
|||||
| (MPA) | (MPA) | % | % | (HB) | (J) |
| ≥345 | ≥550 | ≥24 | ≥36 | 137～228 | ≥20 |

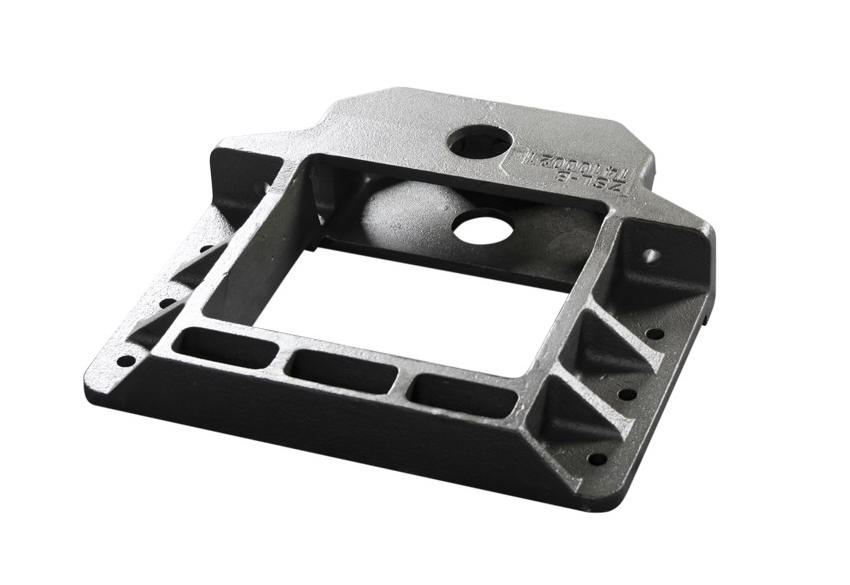

1.Product name : C80E Striker Casting
2.Weight : 60kg
3.Casting material : Grade B+ steel (high-strength low-alloy steel )
4.Casting using sodium silicate sand and precoated sand casting.
5.Heat treatment : Normalizing and tempering
6.The casting surface cracks are not allowed.
