Light Railway System >> Type DTVI2 Fastening System
Product Number：
BUEDRI-T-GD-城轨102
Product Name：

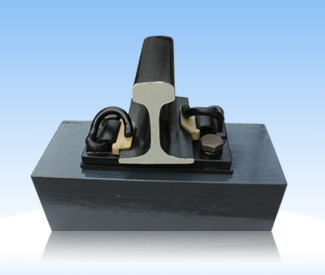

Type DTVI2 Fastening System
Product Specifications：
Type DTVI2
Product Notes：
designed for 60kg/m rail
Product Class：
Light Railway System
Technical index:
Clamping force/clip: 8.25kN,
Vertical static stiffness/rail seat: 20～40kN/mm；
Longitudinal rail resistance /rail seat: ≥11.5kN;
Anti-daw Strength of Embedded dowel: ＞60kN;
Electrical Resistance of Insulated parts: ＞108Ω
Gauge Adjustment range: +8～-12mm.

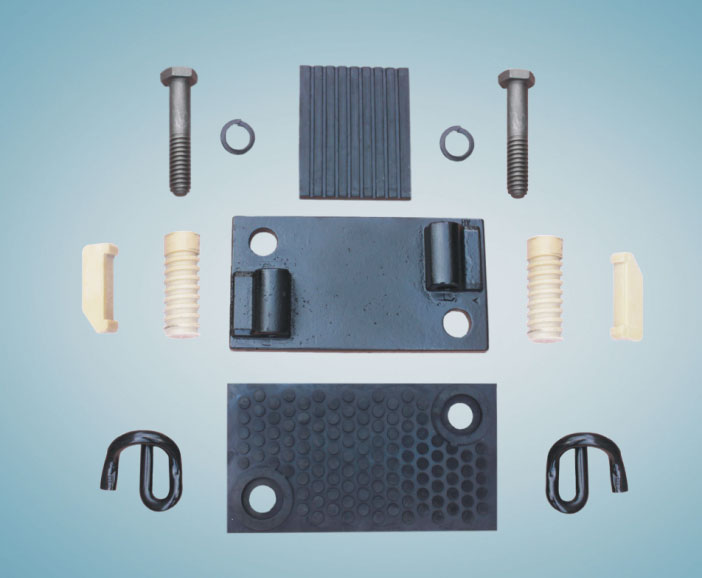

This fastening system is indirect spring system. It is designed for 60kg/m rail.
Technical index:
Clamping force/clip: 8.25kN,
Vertical static stiffness/rail seat: 20～40kN/mm；
Longitudinal rail resistance /rail seat: ≥11.5kN;
Anti-daw Strength of Embedded dowel: ＞60kN;
Electrical Resistance of Insulated parts: ＞108Ω
Gauge Adjustment range: +8～-12mm.
