Light Railway System >> Type DTIV1 Fastening System
update£º2016-12-07 10:14 Click£ºtimes
- brand
- model
- describe
Light Railway System Type DTIV1 Fastening System Product Number£º DT¢ô1 Product Name£º Type DTIV1 Fastening System Product Specifications£º Type DTIV1 Product Notes£º designed for 50kg/m rail Product Class£º Light Railway System This faste
introduce
Light Railway System >> Type DTIV1 Fastening System
Product Number£º
DT¢ô1
Product Name£º
Type DTIV1 Fastening System
Product Specifications£º
Type DTIV1
Product Notes£º
designed for 50kg/m rail
Product Class£º
Light Railway System
Technical index:
Vertical static stiffness/rail seat: 30¡«50kN/mm£»
Longitudinal rail resistance /rail seat: ≥11kN;
Electrical Resistance of Insulated parts: £¾108Ω
Gauge Adjustment range: +4¡«-8mm.

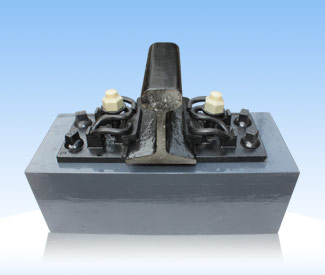

This fastening system is indirect spring system. It is designed for 50kg/m rail.
Technical index:
Vertical static stiffness/rail seat: 30¡«50kN/mm£»
Longitudinal rail resistance /rail seat: ≥11kN;
Electrical Resistance of Insulated parts: £¾108Ω
Gauge Adjustment range: +4¡«-8mm.
