Light Railway System Type DJK5-1 Fastening System Product Number： BUEDRI-T-GD-城轨109 Product Name： Type DJK5-1 Fastening System Product Specifications： Type DJK5-1 Product Notes： designed for 50kg/m rail Product Class： Light Railway
introduce
Light Railway System >> Type DJK5-1 Fastening System
Product Number：
BUEDRI-T-GD-城轨109
Product Name：

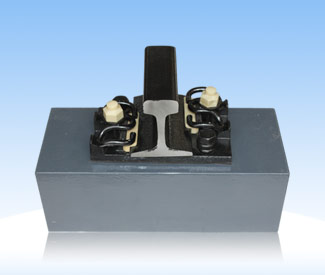

Type DJK5-1 Fastening System
Product Specifications：
Type DJK5-1
Product Notes：
designed for 50kg/m rail
Product Class：
Light Railway System
Product Description
It is designed for 50kg/m rail.
2. Technical index:
Vertical static stiffness/rail seat: 30～50kN/mm；
Longitudinal rail resistance/ rail seat: ≥11kN;
Anti-daw Strength of Embedded dowel: ＞60kN;
Electrical Resistance of Insulated parts: ＞108Ω
Gauge Adjustment range: +8～-12mm.
Product Description

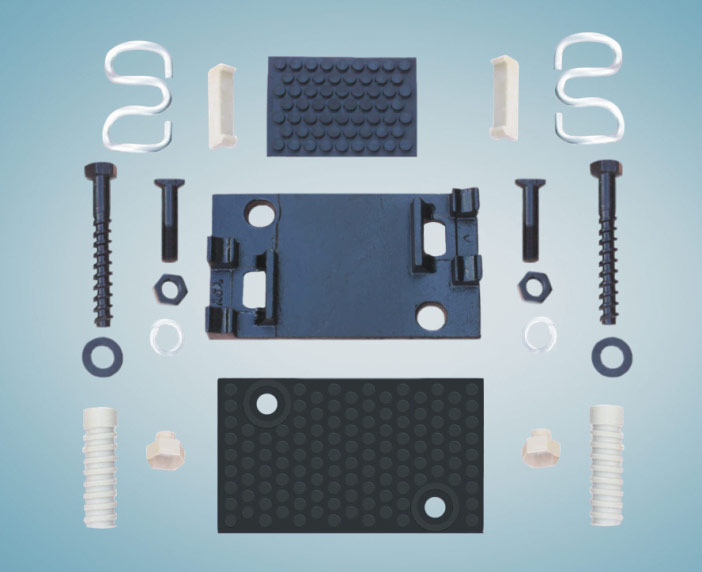

1. This fastening system is indirect spring system.
It is designed for 50kg/m rail.
2. Technical index:
Vertical static stiffness/rail seat: 30～50kN/mm；
Longitudinal rail resistance/ rail seat: ≥11kN;
Anti-daw Strength of Embedded dowel: ＞60kN;
Electrical Resistance of Insulated parts: ＞108Ω
Gauge Adjustment range: +8～-12mm.
